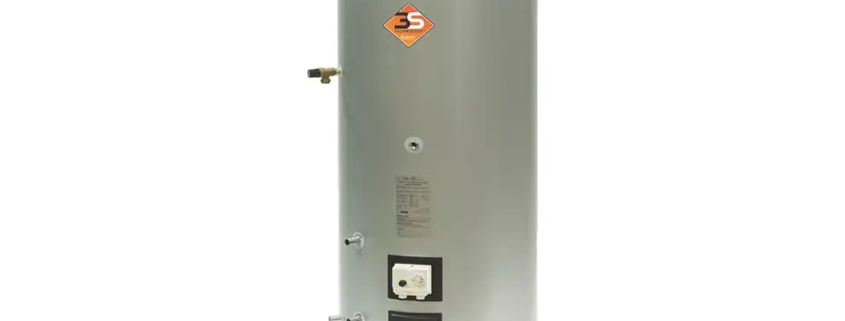

Unvented direct cylinder / direct unvented cylinders

An unvented direct cylinder or direct unvented hot water cylinders (they are both the same thing) vary from a vented cylinder in that the provide mains pressure hot water directly from the cold mains, rather than tank pressure water. The cold water is drawn straight from the main water supply and heated using electric immersion heaters for these direct unvented cylinders / direct pressurised hot water cylinders. This direct form of water heating via electricity is 100% efficient.

These hot water storage heaters are also known as unvented direct hot water heaters, a pressurised electric hot water cylinder, direct hot water cylinders or even an unvented electric water heater.

Gravity fed systems

Unvented refers to the fact that the cylinder is directly fed from the mains water supply. In older times a cylinder used to be fed by a gravity feed system, with a feed and expansion tank in the loft or attic above the cylinder. The distance of the tank above the cylinder is what gave the hot water system the water pressure of the domestic hot water system and made it work correctly- This was called the “head” of the system unfortunately sometime this pressure was low due to the limited distance of the feed and expansion tank above the cylinder and the system wouldn’t work correctly . Then unvented cylinders came along with many benefits and changed everything as they used the mains water pressure to give the cylinder the pressure for the hot water heating system – please see this webpage for a more in depth explanation of an unvented hot water system

The cylinder material also changed at this time – as a stainless steel cylinder has many benefits, they can tolerate exceptionally high pressure, paving the way for today’s unvented hot water cylinders. Stainless steel is an excellent product / material for a pressurised electric hot water cylinder and is a requirement for soft water areas where you can’t use glass lined cylinders. Stainless units can be fitted anywhere in the UK and Ireland.



The other benefit is that a stainless steel cylinder has a significantly higher resistance to all forms of corrosion, including cracks and stress, than a copper cylinder, making it more durable and guaranteeing a longer lifespan for your electric pressurised hot water cylinder.

Advantages of an unvented hot water direct cylinder

The biggest advantage of unvented hot water cylinders is that they deliver superior pressure performance compared to a vented cylinder, since the hot water supply is delivered or fed directly from the cold mains at pressure, which ensures powerful showers at mains pressure and thus the term ” electric pressurised hot water cylinder” as they are heated with electric immersion heater or heaters depending on the size of the hot water cylinder. This unvented electric water heater range are the ideal solution for properties with multiple bathrooms with fast delivery high flow rates.

Because an unvented cylinder is a ‘sealed’ system, it necessitates the installation of an expansion vessel to absorb the heated water’s extra volume as it expands within the cylinder. Vented cylinders, on the other hand require an expansion tank in the loft, to cope with the expansion of the hot water system.

Direct unvented cylinder / unvented cylinders

One of the most important advantages of an unvented hot water cylinders is the flexibility it provides when space is limited in the home, as there is no need for a feed and expansion tank that could freeze in the winter or be at risk of contamination. The added benefit of an unvented system is mains pressure hot water with high flow rates.

Although direct unvented systems do require a system to account for the expansion of the hot water whilst water heating, there are various options to achieve this –

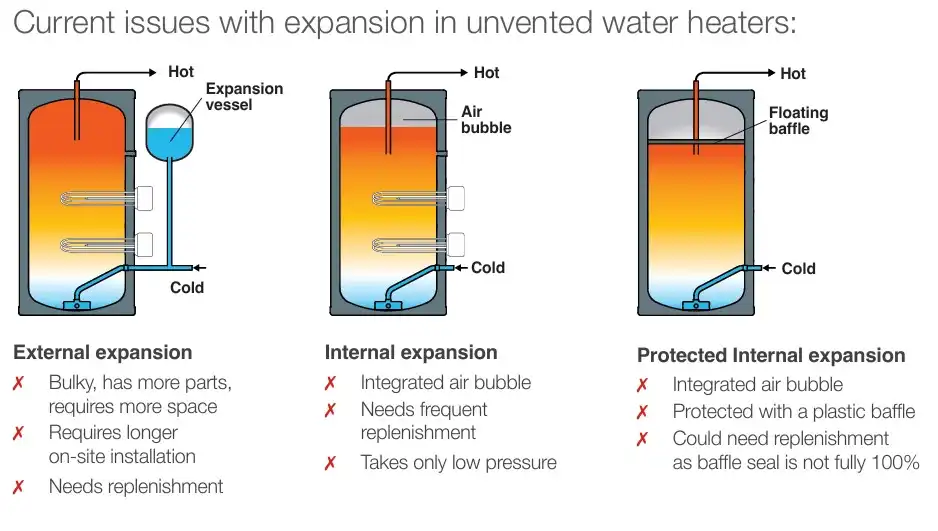

The most common is an external expansion vessel which is fitted onto the cylinder’s pipework – such as commonly used on the heatrae sadia megaflo eco range of cylinders.

Which is often bulky, and requires more space for installation, and also requires more fittings and pipework to be installed leading to longer site installation times, and thus more costs. Also, an expansion vessel, can require the replenishment of the air within it periodically



We have solved these issues with a patented system that ensures no replenishment or external expansion vessel is required, with long product life as it has no moving parts, which reduces running costs and lifetime costs. Less space is also required, they are easy to install, with front access to the connections, factory fitted controls and immersion heater or heaters depending on the capacity of the unvented direct hot water cylinder.



Easy and compact installation for our unvented direct hot water heaters

As no expansion vessel is required – Less space is required for our direct cylinders

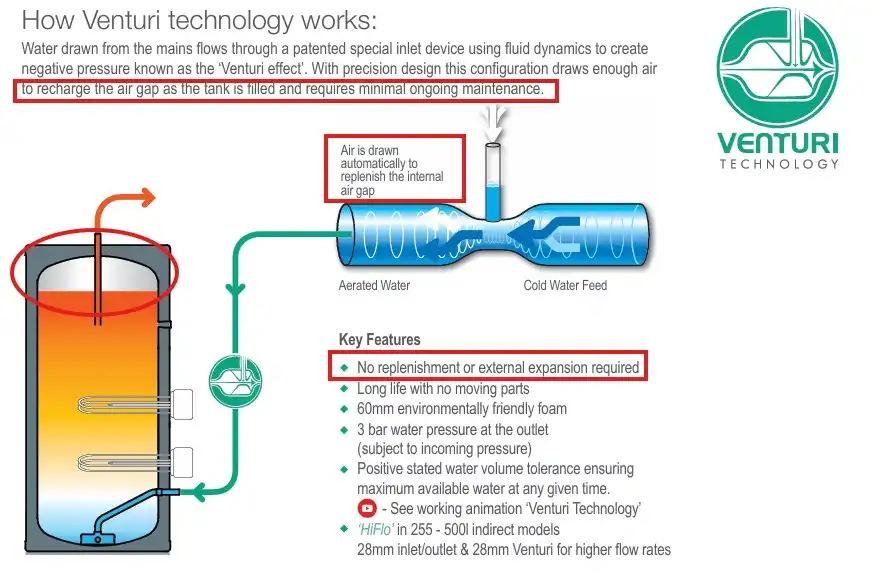

The system uses fluid dynamics to create negative pressure known as the ‘Venturi effect’. With precision design this configuration draws enough air to recharge the air gap as the tank is filled and requires no future maintenance – a truly self-sustaining unvented system.

Flexiheat UK Installing 3S Air Gap device information for unvented hot water cylinders

Full manual is here for download

Flexiheat manual for direct & indirect hot water cylinders

Direct unvented hot water cylinder sizing

Direct unvented cylinders should be sized based on the number of bedrooms, baths, and showers. This should give a hot water tank that is appropriate for the property, but if in any doubt move up to the next capacity in the range to provide some future proofing and flexibility, with more hot water delivery for your taps or showers.

Property                                Direct Hot Water Cylinders Size

1 Bedroom with Bath/Shower         120/150 Litre direct unvented hot water cylinders

Our 150 Litre Direct Unvented Cylinder is our most popular model, and is detailed on its own dedicated webpage here: 150 Litre direct unvented cylinder

and our 120 Litre Direct unvented cylinder is our second most popular model,detailed in more depth on this webpage –  120 Litre direct unvented cylinder

2 Bedroom with Bath/Shower         180 Litre direct unvented hot water cylinders
3 Bedroom with 2 Baths/Shower    210 Litre direct unvented hot water cylinders – these units have their own dedicated webpage here – 200/210/215 Litre direct unvented cylinders

4 Bedroom with 2 Baths/Shower    250 Litre/300 Litre direct unvented cylinders
Larger Properties                               300 Litres to 500 Litre capacity direct unvented cylinders

The 300 Litre direct unvented hot water cylinder has it’s own dedicated webpage here – 300 Litre direct unvented cylinder

If you require large units, or units fitted with more heating power, then you need our commercial range – please see our web page – commercial electric water heaters

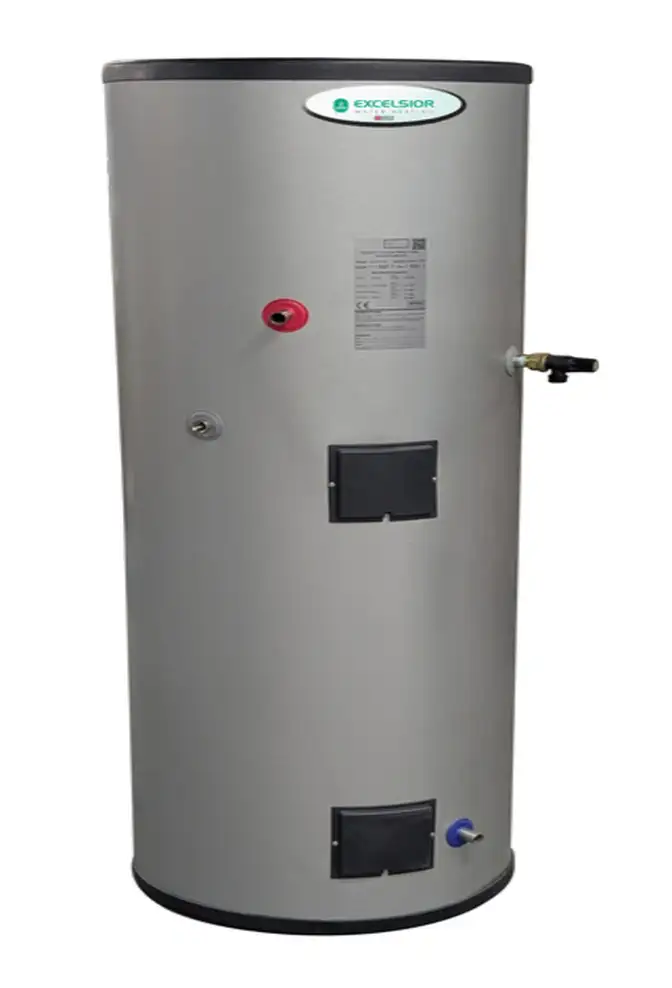

Unvented hot water cylinders with direct water heating

Advantages of our direct cylinders

• Warranty –An industry leading 25 year’s for the high grade stainless steel tank  – ancillary components 1 year

Our Duplex stainless steel cylinder / hot water tanks – ensures that the high quality cylinder has a long and trouble free product life, with low maintenance

• Designed with proven technology and made with a quality manufacturing process in the UK – local support and spares and service back up.

• Approvals – BBA, CE, WRAS (Water Regulations Approval Scheme is an independent UK certification body for plumbing products and materials, helping business and consumers choose compliant products that keep water safe), KIWA, ISO, WRC.

• ErP Water Heating Efficiency- “B” for our unvented cylinders.

• Our 80 litre electric water heater / 80 Litre Direct unvented cylinder is fitted with 1 x 3kW immersion heater

and

• The 100 litre electric water heater to 500 Litre electric water heater / unvented cylinders are a dual immersion cylinder fitted with 2 x 3 kW immersion heaters for rapid heat recovery.

We also have the option of 3 x 3 kW immersion heaters that can be fitted to our 215 Litre to 500 litre direct unvented cylinder models, or the option of 3 x 6kW immersion heaters which are dual phase (i.e. can be wired Single or Three phase) , giving a total power input of 18kW

Our immersion heaters are a high quality unit – made from Incoloy 825 stainless steel, with a temperature control thermostat and energy cut out thermostat.

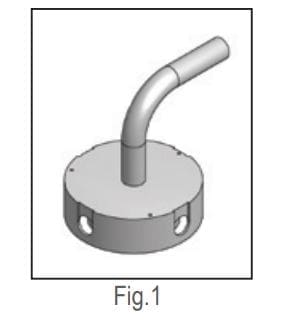

• Inlet diffuser – for optimal blending of cold & hot water and the ideal solution for high flow rates



• Our hot water cylinders pressure tested to 10 Bar – top performance from a top brand with a quality manufacturing process.
• Safety device – Factory fitted with 7 Bar/90ºC pressure & temperature relief valve for “G3 building regulation” unvented water heating compliance.
• Minimal heat loss – 60mm insulation – which is injected polyurethane foam with an outer casing resulting in lower energy use and standing heat loss.
• Balanced hot & cold-water mains pressure to all outlets ensuring high performance showering.
• Our duplex stainless steel direct unvented cylinders from 175 Litres to 500 Litres are fitted with a secondary DHW return connection as standard.
• Width – Standard or slimline models (allowing you to utilise smaller installation locations) are available.
• Duplex stainless steel direct water heaters require no sacrificial anode – thus lower maintenance requirements for our direct unvented hot water cylinders.
• Our direct unvented cylinders come with an energy cut out thermostat set at 85C as standard.
• Our temperature control thermostat can be set from 16ºC to 68ºC (plus /minus 3ºC). We recommend the control thermostat be set no higher than 60ºC to prevent scale build up in hard water areas.
• Price – we consider our price to be a great and fair market price for these high quality stainless steel direct pressurised hot water cylinders.

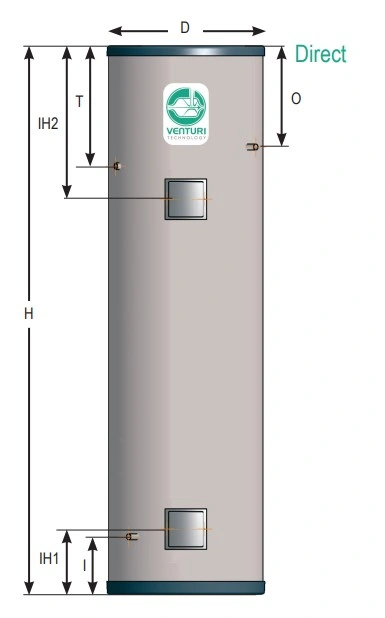

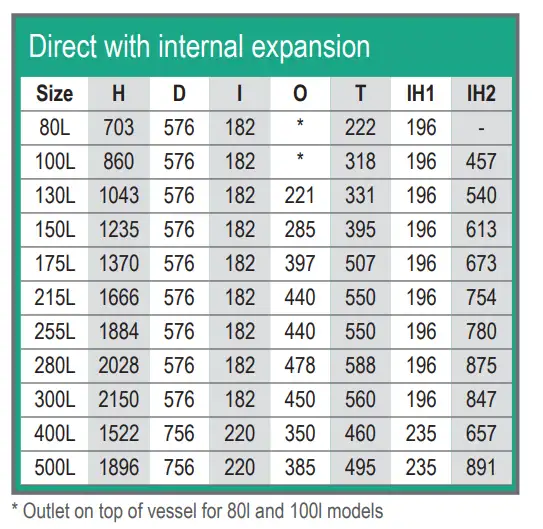

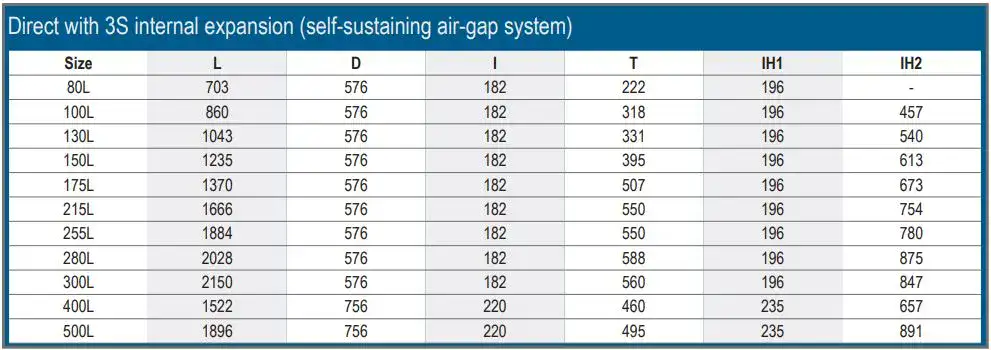

Unvented cylinder range – dimensions and domestic hot water heating times

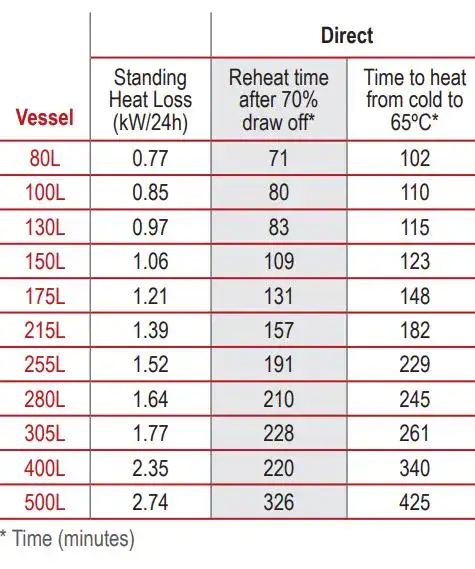

Heating and recovery times



Download the Hot water cylinders direct and indirect unvented brochure from Flexiheat UK

Solar PV domestic hot water

For off-grid homes or properties that want to utilize solar PV (photovoltaics (PV)- which are also know as solar electricity panels) which work by capturing the sun’s energy and converting it into electricity for your property

Thus, you can generate your own renewable electricity by installing solar panels and have a carbon free hot water system for your property or off-grid homes if you use the electric to power the immersion heaters on the unvented direct hot water cylinder.

Unvented hot water cylinders

For more information, prices or lead times on the best direct unvented cylinder / Unvented direct cylinder range on the UK market, manufactured in high grade duplex stainless steel – with a 25 year warranty, which are WRAS approved, and benefits from a built-in expansion vessel,made with dependable technology and quality manufacturing,then call us on 01202 822221, or use the contact form above on the website.
