Marquee Heaters -Indirect Fired Heaters
Marquee Heaters “M Series” Oil or Gas Fired Mobile Indirect Heaters Output from – 22kW to 173kW

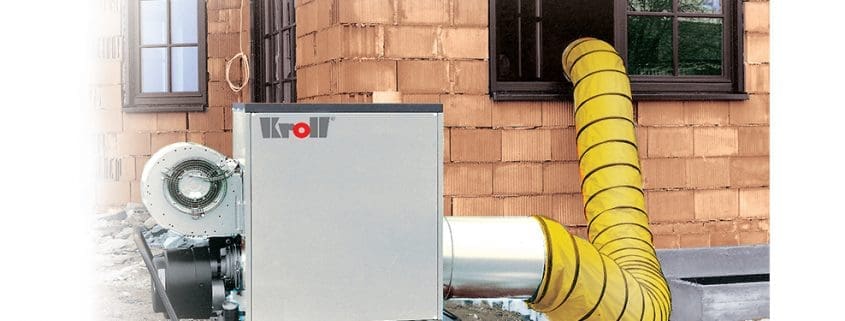

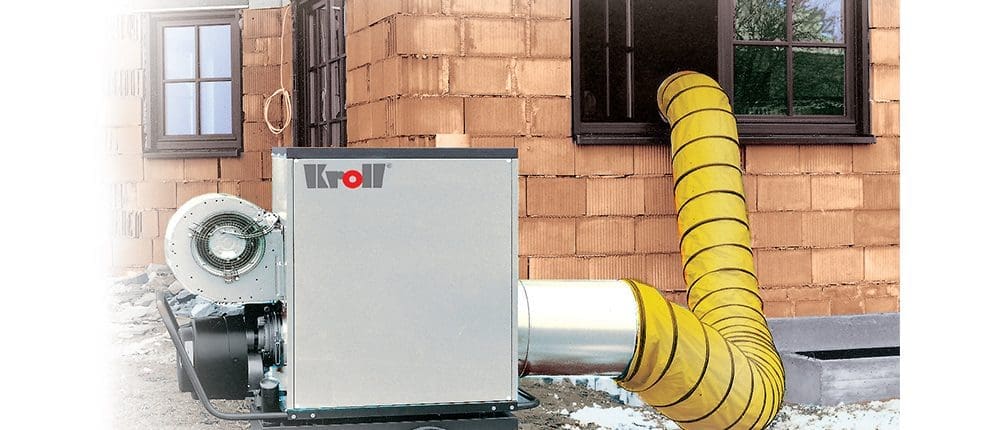

Marquee Heater or Indirect Oil Heater from Flexiheat UK
These Marquee Heaters are indirect marquee heaters – These reliable and efficient marquee heaters are ideally suited in places where there is limited ventilation, as they can deliver high volumes of clean, dry, fume free warm air heat safely and economically for any outdoor events or temporary heating requirements.

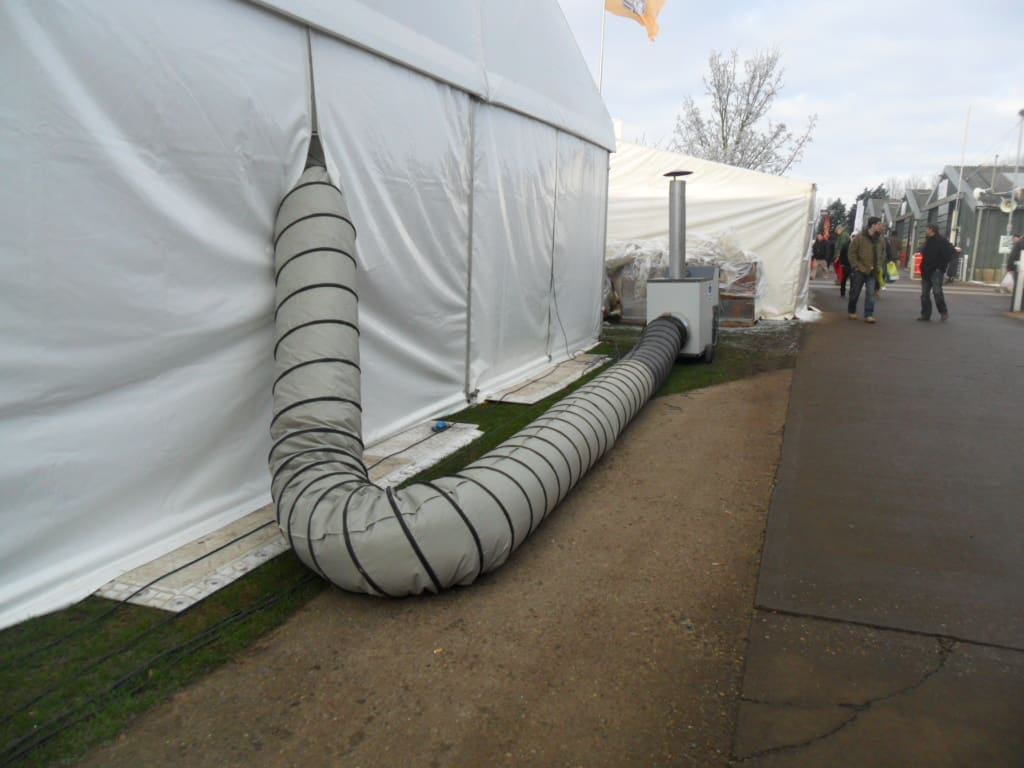

These space heaters are especially suitable for marquees and outdoor events as they can be positioned outside with a warm air hose connected, delivering the hot air heat to inside via flexible ducting to keep the guests warm at the desired temperature.
These indirect oil or gas fired mobile space heaters are also ideal for temporary heating of exhibition halls, workshops, warehouses, construction sites, industrial environments, in fact virtually anywhere you need to keep warm, quickly and efficiently for the heating requirement.
The fuel supply from the inbuilt oil tank ( on the model 25 and Model 50 and an option on the 70 Model of oil indirect heaters) is done via an integrated high-pressure pump with the MA models. Furthermore, the M series of marquees heaters or oil indirect heaters are equipped with a preheated oil filter and a room thermostat connection so they can be thermostatically controlled and are used with a flexible ducting warm air hose.

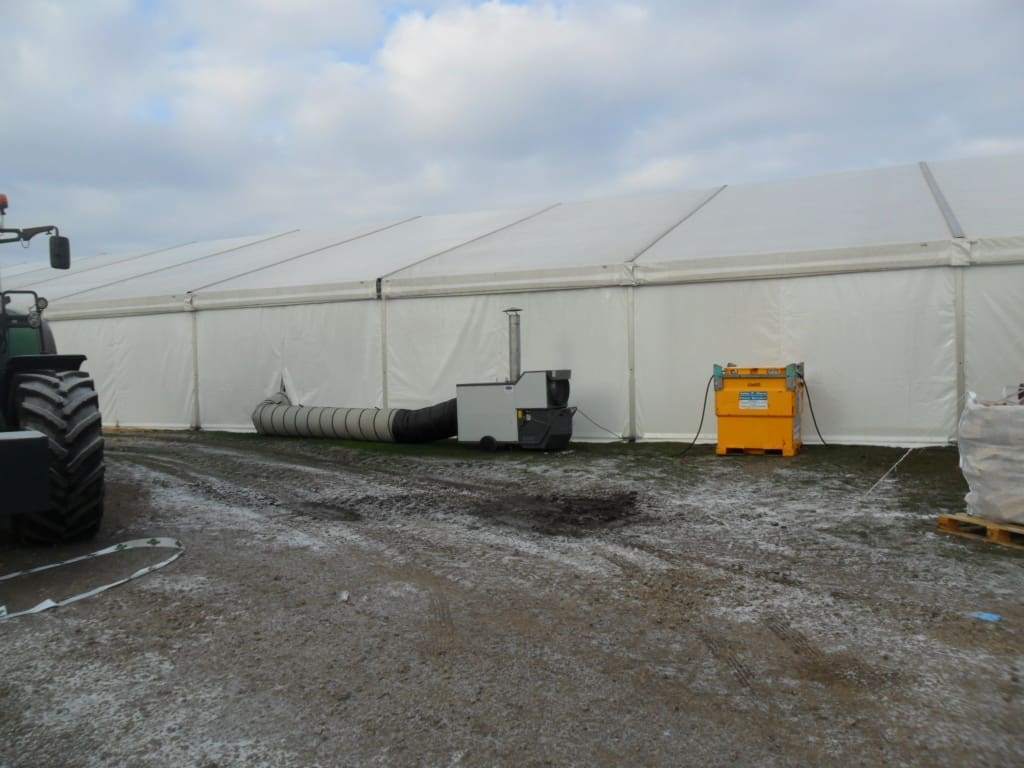

Site picture showing one of our Indirect Oil Heaters / Oil Marquee Heaters heating a large marquee on site in cold weather conditions
MARQUEE HEATERS – INDIRECT OIL FIRED HEATERS – WORKING FEATURES
These marquee heaters / indirect oil heaters can be used in three operating modes –
- Ventilation Only Mode – Whereby the heater will run with the burner switched off, and just blow the ambient air around the marquee
- Heating without room thermostat – The warm air heater will run with the oil burner firing until manually switched off
- Heating with room thermostat – The warm air oil heater will be controlled via room stat (an optional accessories that we sell) and this controls the heater operation purely based on the temperature you require -thus thermostatically controlled indirect heaters.
- 100% Clean and dry heat, with no CO2 as they are indirect heaters
- Outlet temperature – ΔT minimum 58 °C to maximum 63°C dependant on model
- Single way pipe system prevents fuel disturbance
- High efficiency heat exchanger (91%)
- Stainless steel combustion chamber
- Stainless steel heat exchanger
- Oil tank with heating cartridge
- Radial fan – as opposed to an internal fan – which produces more air pressure
- Oil burner
- Recirculating air operation possible
- Room thermostat connection
- Integrated tank (M25/M50/and an option for the M70 model)
- Oil filter
- Heating device for nozzle holder – ensures reliable starting in cold weather
- Preheated oil filter + single-line fuel supply pipe (M70/100/M150/M200)
- Automatic heating oil de-aeration
- Casters (M70/M100/M150/M200)
- Crane eyes + forklift slots (M70/M100/M150/M200)
| With oil burner | M25 | M50 | M70 | M70T | M100 | M150 | M200 | |
| Product code | 040720 | 000296 | 000301 | 101912 | 000282 | 000284 | 000287 | |
| With natural gas burners | M25N | M50N | M70N | – | M100N | M150N | M200N | |
| Product code | 050600 | 050602 | 050604 | 050606 | 050608 | 050610 | ||
| With LPG burner | M25F | M50F | M70F | – | M100F | M150F | M200F | |
| Product code | 050601 | 050603 | 050605 | 050607 | 050609 | 050611 | ||
| With universal oil burner KG / UB | M50U | M70U | – | M100U | M150U | M200U ** | ||
| Product Code | 056382 | 056383 | 056384 | 056385 | 056386 | |||
| Nominal heat input | kW | 25 | 51 | 71 | 71 | 100 | 140 | 188 |
| Nominal heat output | kW | 22 | 46 | 64 | 64 | 90 | 125 | 173 |
| Air volume flow | m³ / h | 1350 | 2600 | 4740 | 4740 | 5400 | 7300 | 10,200 |
| External pressure | Pa | 150 | 170 | 180 | 180 | 150 | 150 | 150 |
| Increase in temperature | K | 58 | 59 | 56 | 56 | 63 | 58 | 60 |
| Oil consumption * | kg / h | 2.09 | 4.26 | 5.93 | 5.93 | 8.36 | 11.8 | 15.85 |
| Gas consumption (Natural gas) | m³ / h | 2.11 | 4.92 | 6.85 | – | 9.64 | 13.5 | 18.13 |
| Gas Consumption (LPG) | kg / h | 1.95 | 3.97 | 5.53 | – | 7.78 | 10.89 | 14.63 |
| Electrical connection | V / Hz / | 230/50 / 1.75 | 230/50 / 4.4 | 230/50 / 4.8 | 230/50 / 7.5 | 400/50 / 4.8 | 400/50 / 5.6 | 400/50 / 7.2 |
| Electrical input | kW | 0.36 | 0.84 | 1.47 | 1.7 | 0.88 | 1.5 | 2.6 |
| Tank capacity | l | 27 | 46 | 74 | ||||
| Flue pipe | Ø mm | 100 | 130 | 180 | 180 | 180 | 180 | 180 |
| Warm air outlet | Ø mm | 295 | 385 | 445 | 445 | 550 | 550 | 550 |
| Air inlet socket | Ø mm | 295 | 385 | 445 | 445 | 550 | 2 x 520 | 2 x 520 |
| Width | mm | 560 | 630 | 780 | 780 | 940 | 940 | 940 |
| Length | mm | 1140 | 1210 | 1490 | 1490 | 1880 | 2330 | 2450 |
| Height | mm | 1080 | 1050 | 1120 | 1300 | 1280 | 1410 | 1640 |
| Weight (oil burner) | kg | 105 | 138 | 134 | 175 | 190 | 270 | 330 |
| Noise level | db (a) | 68 | 72 | 78 | 78 | 77 | 75 | 75 |
* Oil consumption: 1 kg / h = 1.17 l / h (at 15 ° C).
* * Caution: Cable and line protection 16 A (C16) are required
INDIRECT OIL HEATER APPLICATIONS
Building industry
Industry
Marquee heating
Agriculture
Horticulture
Motor trade
Download Marquee Mobile Heaters Brochure
Marquee Heaters / Indirect Oil Heaters for Sale
Some people have been known to call these heaters for marquees , diesel space heater, marquee heater or even a oil fired heater, whatever you call them , they are an indirect heater , that allows warm air to be ducted into a marquee ,warehouse, factory or any other location that needs fresh warm air heating to keep guests warm or staff , without the dangerous CO2 ( carbon monoxide).So if you need one of the best marquee heaters on the market , give us a call as we the best marquee heaters for sale UK wide if you require any more information on this indirect oil heater range of heating equipment then please don’t hesitate to contact our sales department on 01202 822221 or send us an email
