Industrial Gas Heaters  – 20 kW to 1,163 KW Output



Industrial Gas Heaters–Here at Flexiheat UK , we supply a range of gas fired air heaters for industrial heating applications, that can either be floor standing,or industrial suspended heaters or even an external mounted unit , that allows you to save on valuable floor space. The technological evolution of this quality product has always prioritized high performance, energy saving ,ease of maintenance and being cost effective to offer maximum reliability and comfort for warm air heating any industrial and commercial buildings or industrial and commercial applications.

These industrial gas fired warm air heaters, which run on either natural gas or LPG gas, are manufactured under strict observance of all European standards, being well built and made to last in any industrial and commercial applications.

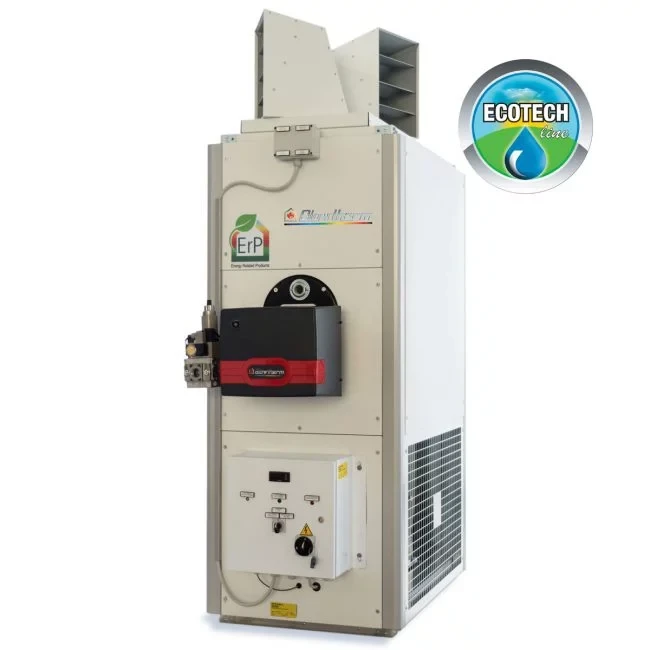

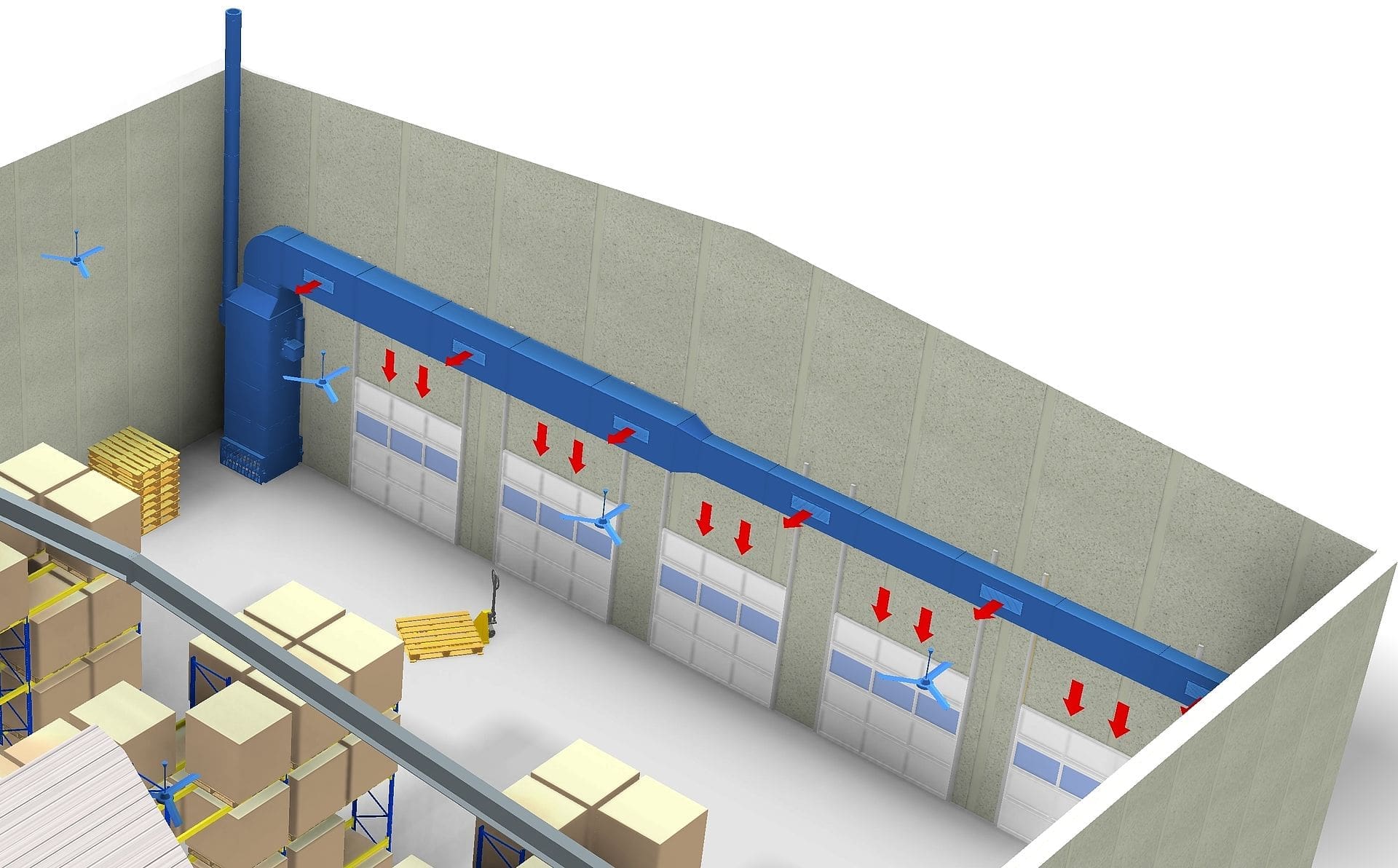

Normally supplied with warm air vents, as shown in the picture above, we also have the option of providing these industrial warm air heaters in a ducted version. Our industrial gas space air heaters have a wide range of energy efficient models that meet and exceed the efficiency and atmospheric emissions requirements of the new European  Energy related Product (ErP) Directive Lot 21 – 2018 legislation which came into force on 1st January 2018.

This legislation applies to warm air heating applications in commercial environments, where humans are enjoying thermal comfort in a heated space, then the warm heaters being installed must achieve a seasonal efficiency of more than 72%, from 1st January 2018.For more details on this legislation, please see our web post here

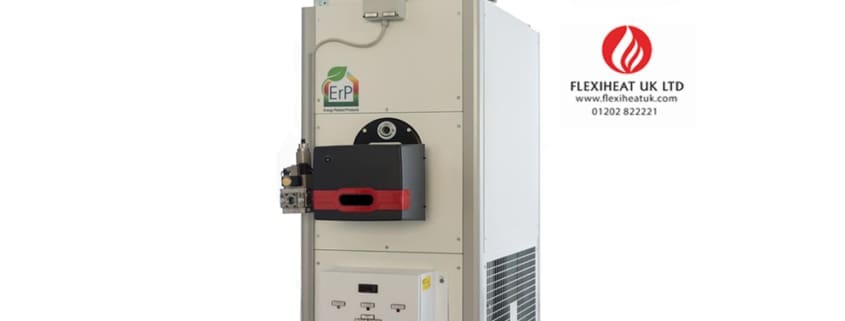

Gas Fired Air Heaters Industrial

Cabinet warm air heaters are the ideal solution for heating and controlled ventilation of medium and large areas such as workshops, laboratories, industrial halls, warehouses, gyms, shopping centres, exhibition halls, theatres, churches , etc. The operating principle is simple, reliable and extremely effective: cold air sucked by the fan is conveyed towards the heat exchanger, warmed up by the combustion that develops inside it; when crossing, the air raises its temperature and then it is distributed in the room to be heated. The heaters also allow the ventilation of the environment during the summer season.

This comprehensive range of gas fired industrial warm air heaters are available in either natural gas or LPG (Propane) powered versions.

The benefit of the “dry” heating technology is to directly and immediately transfer the heat produced by combustion in the environment to be heated, without use of intermediate heat transfer fluids such as water (as each intermediate heat exchange involves thermal losses and further system complexity), ensuring a high overall efficiency of the heating system, combined with a very low thermal inertia. These distinctive features make the installation of our industrial gas fired air heaters particularly advantageous in cases where rapid, reliable, intermittent or occasional heating is required or where there is a risk of freezing.

The Flexiheat gas heater range require very little maintenance and ensure durability and reliability over time, and are available in outputs ranging from 20kW to 1,163kW.

Efficiency of our Gas Industrial Heaters

These gas industrial heaters are the most efficient gas war air heaters on the market. Our gas industrial heaters which are designated the “IH/AR”- the non condensing warm air range or the ” IH/AR – K” series which are condensing warm air heaters and are designed to be combined with gas burners ( either natural gas or LPG gas ) with variable heat outputs, with either two stage (as standard) or modulating burner options.

Our condensing option can work in reduced thermal power operation, the temperature of the flue gases  is lowered until the condensation of the water vapour level contained therein is achieved, ensuring that these industrial warm air heaters work in the condensing mode and achieving efficiencies up to 105%, at 30% heating load.

The variable thermal power output also allows for a quick and effective warm air heating of the large areas in industrial units. When the room temperature reaches the set point, operation at a reduced power (kW) output allows the maintenance of comfort warm air heating without inconvenient temperature fluctuations that can occur, at a low thermal power, warm air condensation system and with reduced supply air temperature.

These features allow not only an ideal comfort, but also important savings in your heating running costs. In applications with high or total external fresh air supply, the variable thermal output keeps the supply air temperature constant as the external environmental conditions change.

Industrial Heaters Gas – Options

Flexiheat cabinet warm air heaters can be equipped with an outlet plenum, sometimes referred to as an air distribution head –  for direct diffusion of warm air into the environment or can be supplied with no warm air distribution head so the can be integrated into warm air ducted air distribution systems. In case of warm air ducted systems, according to the air pressure required by the system, high pressure versions are available.

The standard versions are designed to heat air an incoming air temperature of minus  (-) 15 ° C coming into the heater, but versions suitable for operation in extremely cold climates with an incoming air temperature of minus  (-) 40 ° C are available.

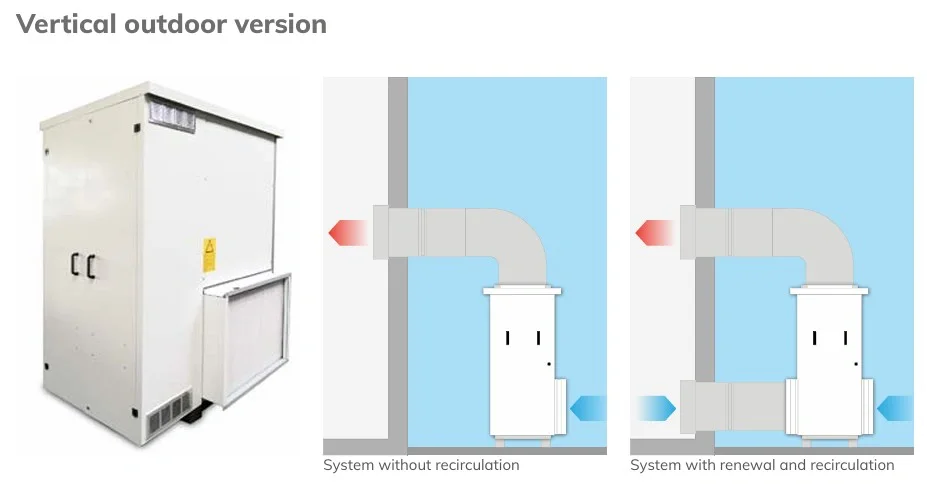

Flexiheat’s range of gas industrial heaters is very complete, and covers a wide range of  kW outputs (outputs ranging from 20 kW to 1,163 kW) and responds to the most diverse needs with models for vertical, horizontal, indoor and even outdoor installation.



The wide range of accessories allows to complete the installation quickly, making these units great as factory gas heaters or warehouse gas heaters and obtain the best comfort for indoor areas and energy saving performance from our industrial gas space heaters.

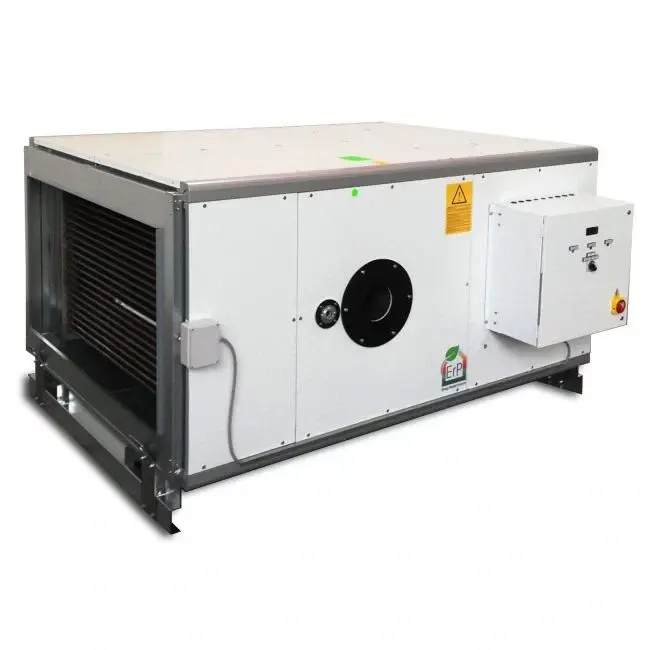

In the case of ducted air systems, high pressure versions of our industrial gas space heaters, with pressures up to 800 Pa are available making them ideally suited to industrial and commercial buildings.



Industrial Gas Space Heaters – Condensing Operation – Lowering heating costs & protecting the environment

An environmentally friendly and high efficiency Industrial Gas Burning Heater (be it natural gas or LPG Gas) has always been our objective. For this reason, we combine our industrial warm air heaters with gas burners of the highest technology and reliability, to obtain “clean” combustion.  Minimal environmental impact, protection of the environment and at the same time much lower maintenance costs thanks to maximum protection of the heat exchange surfaces… the advantages of our industrial gas burning heater range are never ending !

Versions with elevated temperatures and pressure

Dedicated principally to industrial air heating applications such as processing plants, industrial furnaces and controlled temperature environments with a high level of air filtering. This version can also be used for the heating of industrial environments. Below is our industrial gas blower heaters, configured for a ducted warm air heating system, which has an up-rated fan pressure.

Industrial Gas Space Heaters

• The external casing of this gas heater range consists of demount-able panels made of pre-painted galvanized steel sheet, with thermal insulation of the surfaces exposed to the heat exchanger and a control panel in laminated steel sheet. For all the models there is a load bearing structure of painted galvanized steel of particular profile, joined by special die-cast aluminium joints. Each element is individually fixed to the supporting framework and is easily removable to allow access to the inner workings of these industrial gas space heaters

• Highly efficient heat exchanger, made of welded sheet stainless steel, easy to inspect for normal operations of cleaning and maintenance, consisting of:

• The Combustion Chamber used in these industrial gas fired air heaters consists of a cylindrical flame inversion combustion chamber with a compact design, in Aluminized steel which is resistant to high temperatures, of large volume and low thermal load, with circular or ellipsoidal profile, complete with inlet with burner plate and flame control hole.
• Heat exchanger tubes made in either aluminized steel for the non-condensing warm air heaters or AISI 441 stainless steel for the condensing warm air units, suitable for the heater operation with reduced thermal power in condensation. Fumes tubes have a flattened tubular section with staggered and opposing turbulent imprints, with special reticular structure turbulators for maximum heating efficiency, complete with front and rear manifold with detachable inspection door, entrance for chimney connection and connection for condensation drainage. The heat exchange surface is very extensive and its resistance to high temperatures is exceptional.

• Our gas heater range are fitted with one or more high performance and highly efficient centrifugal fans with low level of sound emission, powered by an electric motor (s) connected by a pulley and belt drive system, with a variable ratio driven pulley that ensure high operating performance. The optional air intake filter is easily removable. This ensures that our gas fired air heaters industrial range provide a high performance ventilation to the building they are heating

• Fan-limit safety thermostat/s, for automatic control of ventilation group and for the safety stop of the gas burner in case of abnormal overheating of the air.

Two stage burners have been specifically designed to achieve the minimum required for the latest ErP regulations, and these help with the efficiency but the ultimate highly efficient is a modulating burner, which are specifically designed to control the outputs ranging of the heaters very effectively.

• Electrical panel for command and control with general switch.

For sizing purposes,we just require your building dimensions and insulation levels and desired internal temperature.

Download the Gas fired industrial warm air heater brochure from Flexiheat UK

Non Condensing industrial warm air heater options

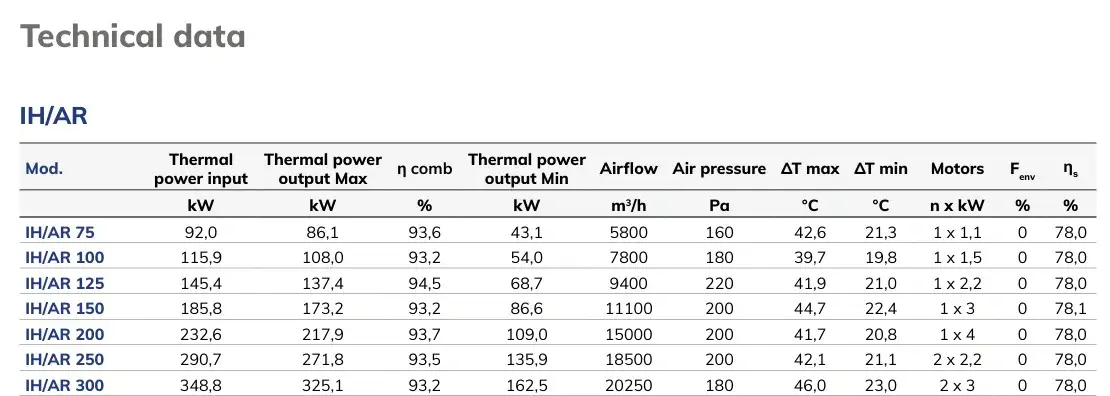

From 86.1 kW to 325.1 kW these industrial warm air gas fired heaters are available in a non-condensing models.

These warm air heaters comply with the ErP 2021 legislation for warm air heating, specifically the 2009/125/EC Eco Design Directive 2281/2016/EC. – ηs,h seasonal efficiency min 78%—NOx < 70 mg/kWh referred to GCV (GAS).



This range of warm air heaters has a heat exchanger entirely made of aluminized steel, resistant to high temperatures including:

Trought flame on cylindrical combustion chamber.

Flat-shape tubes with a large exchange surface.

Flue chamber with inspection for easy access cleaning.

Flue turbulators made of AISI 304 stainless steel with high thermic resistance.

Download the Industrial Gas Heaters Manual – IH/AR Standard non condensing range from Flexiheat UK

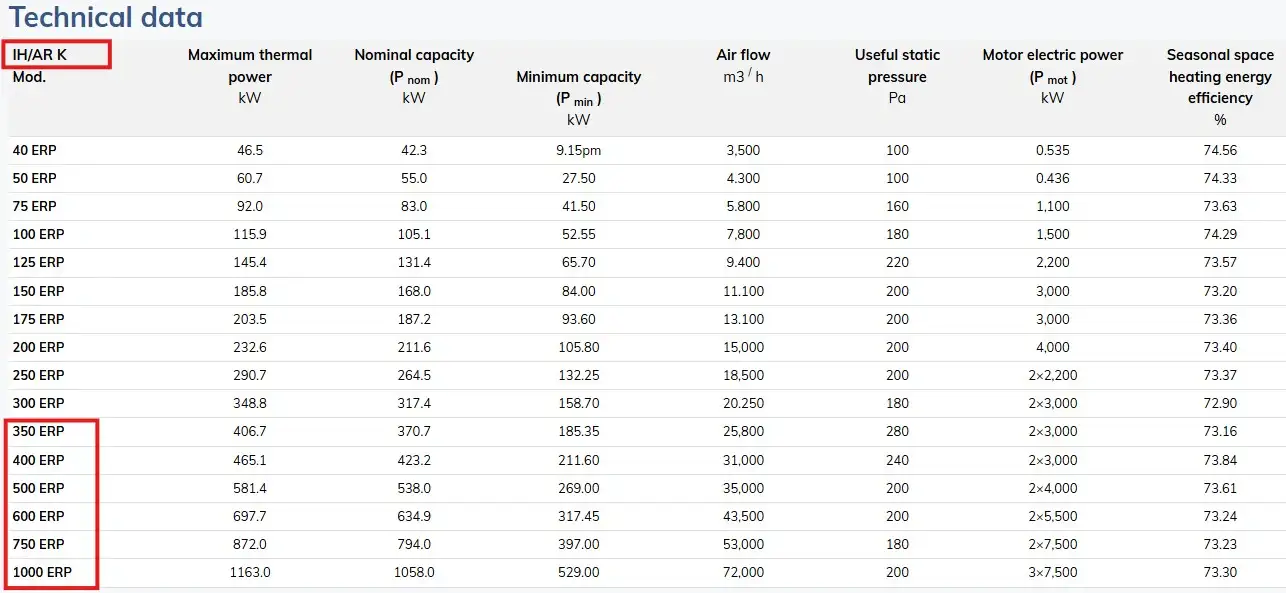

Technical Information on our Industrial Gas Heater Range

Our 350kW and above industrial gas space heater range are only available in condensing models as you get greater fuel consumption savings with condensing warm air heaters.These warm air heaters are designated the IH/AR “K” range –

Our condensing warm air heaters version boasts a combustion efficiency of up to 105% when used at 30% of the heating load. The IH/AR “K” range meets the ErP limits set for January 2021 for warm air heating. This range is in compliance with EN 17082.

This condensing warm air range benefits from:

• 3-pass heat exchanger in AISI 441 stainless steel suitable for high-efficiency, low-NOx condensing operation (in combination with a low NOx class 3 burner).
• Stainless steel smoke turbulators.
• Sandwich panelling (exterior in 10/10 mm pre-painted galvanised steel, 40 mm high-density mineral wool thermal and acoustic lining, interior in galvanised sheet metal).
• Inspection points for simple and quick maintenance
• Condensation drainpipe and syphon as standard.
• Thermostatic safety devices that intervene automatically when the maximum permissible temperatures are exceeded.
• Electrical control panel, with an IP44 protection rating, for managing and controlling the system.
• Double inlet centrifugal fan with forward-curved blades and a dynamically balanced impeller, mounted on elastic supports.



Download the Industrial Gas Heaters Manual – IH/AR “K” Condensing Range from Flexiheat UK

We also do a range of mobile gas heaters, which can be either direct gas fired , or indirect gas fired depending on your requirements, and a suspended gas unit heater ( if floor space is at a premium ) Please see our web pages on these individual ranges, should they suit your requirements better. Please see our products page here

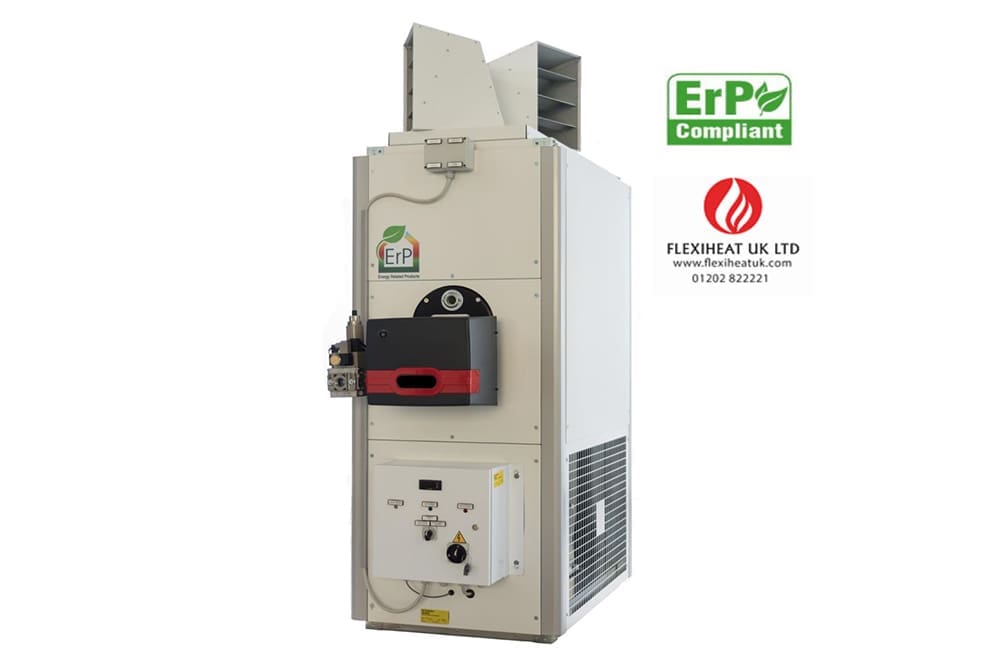

Gas Fired Air Heaters Industrial

We also do a full range of gas fired air heaters industrial , that can be either floor mounted or suspended from the ceiling or the wall, should the floor space be of a premium or it’s impractical to fit these Industrial gas fired heaters at that location.

Industrial Gas Heater Blower

Some people refer to these heaters as an industrial gas heater blower type, in reality they are just industrial gas heaters as we would call them , as all of this range of heaters have a blower or fan , that takes the cold air entering the air heater, and pushes it over the heat exchanger, this air is then warmed up and pushed through either an air distribution head , or  an open headed heater that is connected to duct work – these are commonly known as ducted warm air heaters

Industrial Gas Heaters for Sale UK and Ireland

So if your looking for the best Industrial Gas Heaters / Gas fired air heaters industrial /Gas Industrial Heaters / Industrial Gas Space Heaters on the UK market, that are particularly suited to factory and warehouse heating, that are high efficiency condensing heaters. Please don’t hesitate to contact our sales team on 01202 822221 or click here for our email contact form
