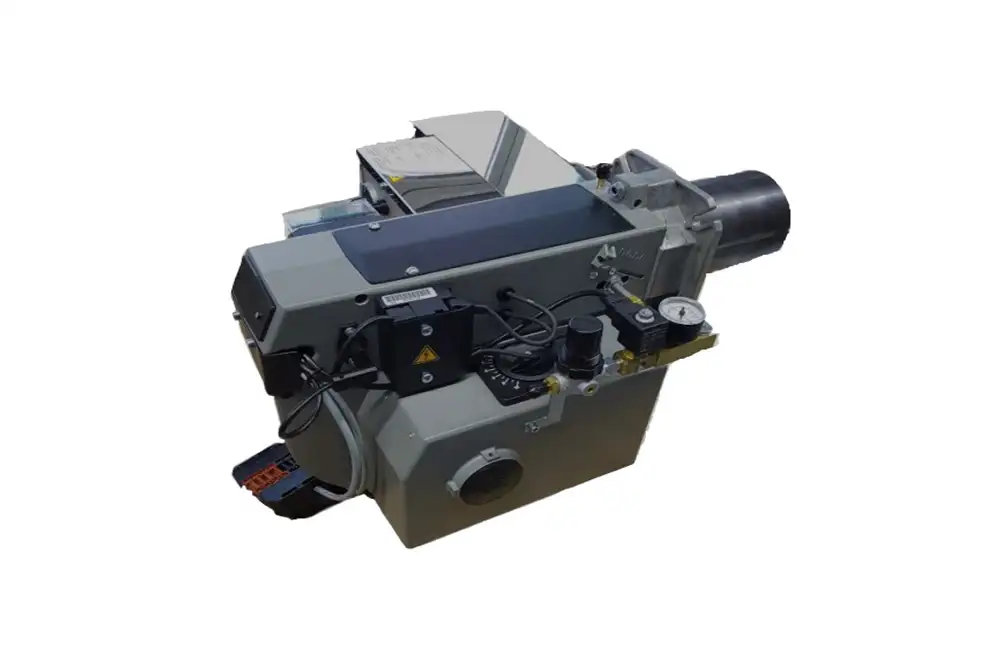

Bio Oil Burner / Vegetable Oil Burner



Bio Oil Burner / Vegetable Oil Burner , are available from 26kW to 190kW Output

Bio Oil Burner – This range of bio oil burners  require a compressed air supply . The bio oil burners are highly robust, low pressure burners characterized by limited consumption levels, low pollutant emissions, reliability, safe working, easy installation and maintenance.Resulting in high energy efficiency with a renewable energy oil HVAC system.

These bio oil burners are built to burn bio oils from B10 to B100 ( or pure vegetable oil ) which are renewable energy oils but they will also burn,light heating oil, heavyheating oil, used oils(waste) and waste vegetable oils. The design is based on the emulsion principle that creates an air/oil atomization mixture,burning with excellent combustion results.

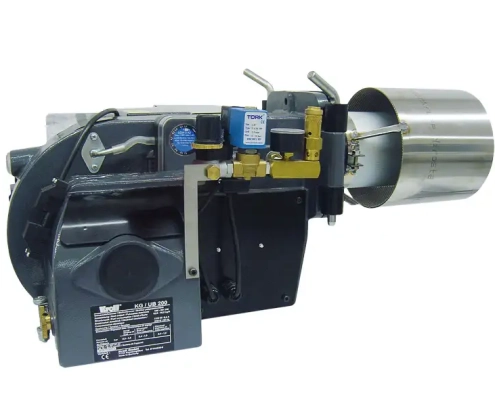

When mounted to a cast iron boiler, we recommend our “ZVP” burner tube which attaches to the end of the burner, which in essence makes another combustion chamber withing the boiler to ensure hot combustion in the heat exchanger of the boiler.

Steel heat exchanger boilers generally get hot enough not to require this ZVP burner tube to be fitted to the burner.

Usually fitted to a heating boiler for a hot water system, which then feeds heat emitters and / or an indirect hot water tank or cylinder for domestic hot water production.

We have a full range of bio-oil / vegetable oil burners matched to our heating boilers as a full package, which are shown on this webpage – Multi oil / waste oil boilers.

These oil burners can also be fitted to warm air heaters as well. We do a full range of these warm air multi oil heaters, which are on their own dedicated webpage here – Multi oil / waste oil warm air heaters.

Bio Oil Burners – Construction

We use top-quality materials such as thermally-treated steels, intermediate checks and final tests guaranteeing the product’s great reliability. These bio oil burners are renowned  for their sturdy construction. The high quality mechanical parts of the compressor (rotor, blades and liner) and of the delivery pump (rotor, piston, ring) of special materials ,assure a long life and give the highest reliability of service also if burning used oil.

All principal components of the burners are fixed to a spiral aluminium body creating a sturdy, monolithic structure with automatic safety devices. Their components can be reached comfortably: maintenance and cleaning are easily carried out. For a perfect regulation of the fuel combustion, all burners have electrical control equipment (thermostats, manometers, cocks etc. ).

Bio Oil Burners / Vegetable Oil Burners – Operating Principles

The bio oil burner / Vegetable oil burner operates according to the emulsion principle. Due to a perfect mixture (emulsion) of fuel oil and for a part of primary air in the compressor and its subsequent atomizing in the nozzle, a perfect combustion is obtained. No harm is done to the environment, as combustion values demonstrably fall within the standards in force.

Vegetable Oil Burner

This vegetable oil burner will various vegetable oils such as –

• Sunflower Oil
• Canola Oil / Rapeseed Oil
• Soybean Oil
• Peanut Oil
• Soybean Oil
• Sesame Seed Oil
• Grapeseed Oil
• Corn Oil
• Safflower Oil
• Olive Oil

Burner Technical Data



Burner Model	KG/UB20	KG/UB50	KG/UB70	KG/UB100	KG/UB150	KG/UB200
Heat Output in KW for Vegetable Oil (based on rape seed oil)	26-38	37-54	56-81	81-100	93-147	131-190
Heat Output in Btu’s in 000’s	88 -129	126 – 184	191 – 276	276 – 341	317 – 501	446 – 648
Fuel Consumption in KG’s	2.5 – 3.7	3.6 – 5.2	5.4 – 7.8	7.8 – 9.6	8.9 – 14.1	12.7 – 18.0
Compressed Air Pressure Requirements	1.5 BAR	1.5 BAR	1.5 BAR	1.5 BAR	1.5 BAR	1.5 BAR
Compressed Air	120 l/min.	120 l/min.	120 l/min.	120 l/min.	120 l/min.	120 l/min.



These vegetable oils can be regarded as carbon neutral, as they only release as much carbon , when burnt as a fuel , as they used to grow the original plant , via photosynthesis . The carbon neutral fuel helps reduce global warming unlike a standard heatinng oil or gas boiler . Vegetable oil burns cleanly and  helps solve another issue – pollution from fossil fuels. Vegetable Oil ,like bio diesel helps to reduces carbon dioxide emissions and greenhouse gas production for us all.

Should you require anymore assistance or information on our Bio Oil Burner / Vegetable Oil Burner, which we often sell with our vegetable oil boiler / waste oil boiler or our warm air heaters , making them a bio diesel heater / vegetable oil heater, please don’t hesitate to contact our sales team on 01202 822221 or click here for our email contact form
