Oil Burning Heater – 60 kW to 970 kW Output

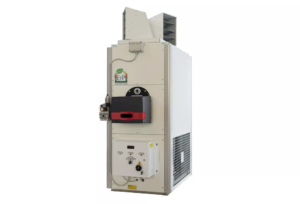

Oil Burning Heater – Here at Flexiheat UK , we supply an oil burning heater ,that can either be floor standing, suspended or even an external mounted unit , that allow you to save on valuable floor space.The technological evolution of this quality product has always prioritized  high performance, energy saving and ease of maintenance to offer maximum reliability and comfort for warm air heating any industrial environments. The warm air heaters of the FH series, which run on oil, are manufactured under strict observance of all European standards, being well built and made to last.Normally supplied with warm air distribution heads as shown in the picture opposite, we also have the option of providing the heater in a ducted version.

Oil Burning Heater -High Performance Ventilation

One or two double suction centrifugal fans, coupled with electric motors directly or with pulleys and
v-belts  ensure high operating performance. The optional air intake filter is easily removable.

Thermal Insulation

The external cover consists of galvanized and pre-coated steel panels with thermo acoustic insulation and a control panel in
laminated steel sheet.Each element is individually fixed to the supporting framework and is easily removable to allow access to the inner workings of the heater

Combustion Chamber  and Heat Exchanger

The cylindrical combustion chamber is in aluminized steel and features heat exchange tubes interconnected with turbulators in
stainless steel. The heat exchange surface is very extensive and its resistance to high temperatures is exceptional.

An environmentally friendly and high efficiency Oil Burning Heater has always been our objective.

For this reason we combine our FH warm air heaters with burners of the highest technology and reliability, in order to obtain “clean” combustion, without any unburnt oil and with a reduced level of polluting elements.Minimal environmental impact, protection of the environment and at the same time much lower maintenance costs thanks to maximum protection of the heat exchange surfaces… the advantages of our oil burning heater range are never ending !

Versions with elevated temperatures and pressure

Dedicated principally to industrial applications such as processing plants, industrial furnaces and controlled-temperature environments with a high level of air filtering. This version can also be used for the heating of industrial environments. Automation and thermo regulation systems can be designed for every application.Below is a our oil burning heater, configured for a duct warm air heating system, which has an up-rated fan pressure.



Heater synthetic description

• External casing consists of demountable panels made of pre-painted galvanized steel sheet, with thermal insulation of the surfaces exposed to the heat exchanger. For all the models (except ENERGY 60) there is a load-bearing structure of painted galvanized steel of particular profile, joined by special die-cast aluminum joints.

• High efficiency heat exchanger, made of welded sheet steel, easy to inspect for normal operations of cleaning and maintenance, consisting of:

Flame inversion combustion chamber, in AISI 430 stainless steel resistant to high temperatures, of large volume and low thermal load, with circular or ellipsoidal profile, complete with inlet with burner plate and flame control spy.

Heat exchanger tubes entirely in AISI 304 stainless steel, suitable for the heater operation with reduced thermal power in condensation. Fumes tubes have a flattened tubular section  with staggered and opposing turbulent imprints, with special reticular turbulators for maximum efficiency, complete with front and rear manifold with  detachable inspection door, entrance for chimney connection and connection for condensation drainage.



• Ventilation group consists of one or more high performance centrifugal fans with low level of sound emission, powered by an electric motor (s) connected by a pulley and belt drive system, with a variable ratio driven pulley.

• Fan-limit safety thermostat/s, for automatic control of ventilation group and for the safety stop of the burner in case of abnormal overheating of the air.

• Electrical panel for command and control with general switch.

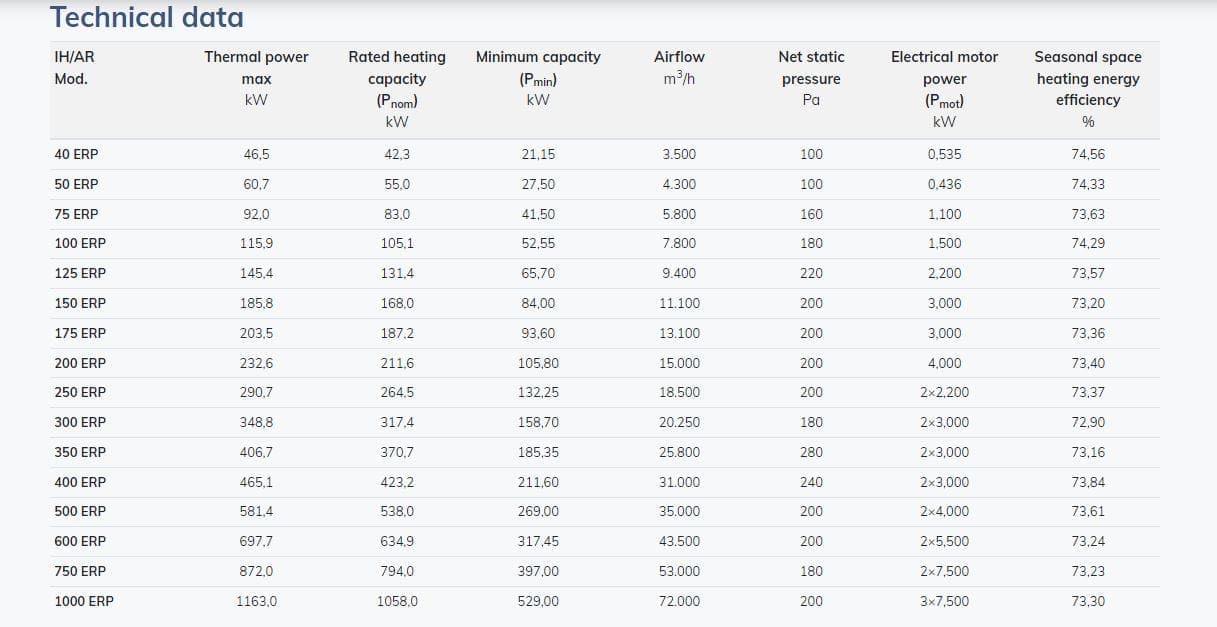

Technical Data on the Oil Burning Heater Range









We also do a range of mobile oil heaters, which can be either direct oil fired , or indirect oil fired depending on your requirements, and a suspended oil unit heater ( if floor space is at a premium )

Please see our web pages on these individual ranges, should they suit your requirements better.

So if your looking for the best Oil Burning Heater on the UK Market, Please don’t hesitate to contact our sales team on 01202 822221 or click here for our email contact form
