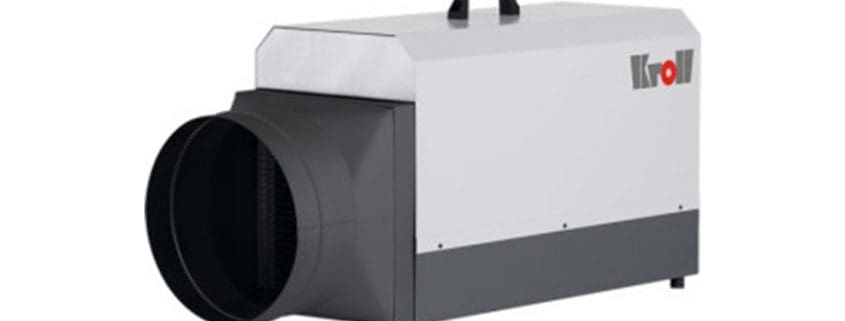

Ducted  Electric Heaters -12kW or 18kW

Ducted/Ductable Electric Heaters
These ducted electric heaters can be ducted to direct the warm air produced to the required areas and are designed for being operated in workshops, nurseries, shops, exhibition rooms, warehouses, site huts, or elsewhere on building sites. There, they provide comfortable heat in spring and in autumn or if there is a sudden onset of cold weather. They can be used as frost control, too.

These Ducted Electric Heaters benefits are –

  • economical:
    The heat is dispensed efficiently and in a concentrated way to the ambient air by a powerful fan. They are 100% efficient
  • convenient:
    The electric fan heaters do not use up any oxygen. They do not give off any unpleasant smell at all, so they can also be operated in rooms which have bad or even no means of ventilation. They are ready for use everywhere and at once. Temperature can be adjusted and is controlled by a thermostat. In summer, they can be used for ventilating rooms as well.
  • robust and safe:
    All of our ducted electric heaters are VDE checked and thermally protected. The enclosed heating elements have got a stainless jacket, the boxes consist of galvanized steel sheet and, in addition, they are stove-enamelled. They are well built and made to last, as you would expect from a Germany made ducted electric heater.
  • mobile:
    Thanks to their small dimensions, these ducted electric heaters can be taken everywhere. You will find a place for them even in very confined space. Model E18 now also available as version “SH”, “S” for hose connection and version “H” for operation at high room temperatures for special duties such as thermal pest control.

Technical Data for the E18SH Heater

Nominal heat input12/18 kW
Air delivery960 m³/h
Temperature rise60 K
Electrical connection400/50 V/HZ/A
Width320 mm
Length990 mm
Height435 mm
Weight32 kg
Noise level64 db(A)

Download Technical Manual for E18SH


FHE3  Electric Ductable  Heater – 3kW

Industrial Electric Heaters

Specification

  • Approx Airflow Rate = 423m³/hr
  • Fan Type = Radial
  • Sensible Heat Capacity = 10,236 BTU (3kW equivalent)
  • Max Heat Capacity (kcal) =  2625
  • Supply = 110v or 230v 50hz
  • Plug Size = 32A (110v) 13A(230v)
  • Sound (3m) =  45dB(A)
  • Spigot  = 200mm – not supplied as standard
  • Mobility = Portable
  • Remote Thermostat Optional
  • Dimensions HxWxD (mm) = 360 x 300 x 330
  • Weight = 10kG
  • Over temp protection  = Yes
  • Max Ducting = 2 Metres

Commercial Electric Ducted Heaters Model – FHE29

  • Heat capacity 61,416 BTU / 18kW
  • 32A 400V 3ph supply
  • 1800m3/hr Airflow
  • Adjustable ThermostatDucted/Ductable Electric Heaters
  • Dimensions HxWxD (mm) 415 x 345 x 504
  • Sound (3m) 60dB(A)
  • Weight 20kG

A very powerful 32A heater that offers 29kW of sensible heat. Designed and built to withstand the rigours of regular site use comes complete with features including an adjustable thermostat, over temperature protection and lockable castors while the optional single and multiple outlets allow the FHE29 to deliver warm air either along up to 10Mtrs (maximum) of ducting via one 250mm diameter spigot or to up to 4 separate areas, via the 4 x 150mm diameter spigot option . A clean, odourless and fume free alternative to gas and diesel heaters.

Download FHE29 Commercial Electric Heater Manual


Ducted/Ductable Electric Heaters

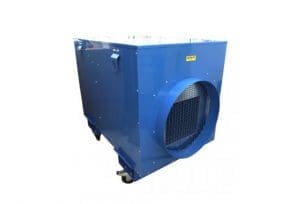

Industrial Electric Ductable Heaters Model – FHE42
  • 42 kW Nominal Output Heater – With two stage output – 21 kW or 42 kW
  • 63 Amp , 400 Volt,  3 Phase supply
  • Airflow Rate – 4,000 M3/hr
  • Maximum Ducting Length –  30 Mtrs
  • Spigot Diameter –  500 mm
  • Weight – 130 KG
  • Adjustable Thermostat
  • Fork pockets -making the unit easy to transport
  • Lockable castors – which make this commercial electric heater easy to move
  • Sound Level at  3 Mtrs –  73dB(A)
  • Dimensions HxWxD (in mm) – 1000 x 700 x 1100

The most powerful 63A heater available, which can be ducted up to 30 Metres . Designed and built for industrial use the FHE42 features variable heat output, 24 Volt control circuit for safety, remote thermostat socket, spigot, over temperature protection and an auto run on as standard.

Download Technical Manual for FHE42 Heater


Ducted/Ductable Electric Heaters Industrial / Commercial Electric Heaters – Ductable  Model – FHE63

  • 63 kW Nominal Output Heater
  • 125 Amp ,  400 Volt,  3 Phase supply
  • Airflow Rate – 8,000 M3/hr
  • Maximum Ducting Length –  50 Mtrs
  • Spigot Diameter –  500 mm
  • Weight – 200 KG
  • Adjustable Thermostat
  • Fork pockets -making the unit easy to transport
  • Lockable castors – which make this commercial electric heater easy to move
  • Sound Level at  3 Mtrs –  75dB(A)
  • Dimensions HxWxD (in mm) – 1000 x 700 x 1690

This Electric Commercial Heater , with it’s output of  63 kW has been designed for heavy duty applications. Ideal for use in shipping, surface coating or large scale heating applications; the FHE63 features a powerful contra rotating fan motor for pumping heat down long lengths of ducting, a heavy duty build, thermostatic control, over temperature protection and lockable castors, with a maximum warm air hose / duct length of 50 Metres


Download Brochure for Ductable Electric Heater Range – FHE13 & FHE29

Download Brochure for Ductable Electric Heater Range – FHE42 & FHE63

Ducted Electric Warm Air Heaters For Sale

Should you require anymore assistance or information on our Ducted Electric Heater / Ductable Electric Heaters please don’t hesitate to contact our sales team on 01202 822221 or click here for our email contact form.
